Explore the ARM8603 86-inch Interactive Display

In a world where collaboration is the key to success, the ARM8603 86-inch interactive display emerges as a powerful tool that redefines how we work and learn. Packed with a plethora of features and specifications, this interactive display is designed to elevate your interactive experiences to new heights. In this overview blog post, we’ll take a closer look at what makes the ARM8603 a standout choice for businesses, educational institutions, and collaborative environments.

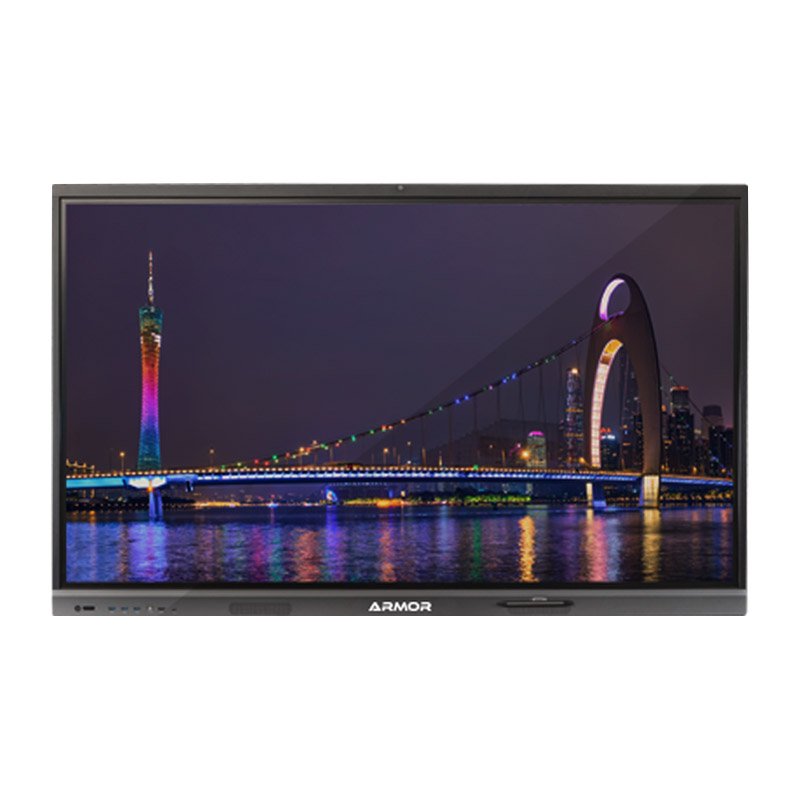

Immersive Display

At the heart of the ARM8603 is its remarkable 86-inch display, which provides an engaging canvas for your content. With a 3840 x 2160 resolution and a brightness of 350cd/㎡, it delivers crystal-clear visuals. Additionally, the high contrast ratio of 4000:1 ensures that your images are rich and vibrant, while the DLED backlight technology enhances efficiency. Moreover, the 178° viewing angle (both vertically and horizontally) ensures that the display is visible from various positions.

Advanced Touch Technology

The ARM8603 incorporates Infrared Multi Touch Technology, supporting up to 20 simultaneous touch points. Its 4mm Ag anti-glare glass surface is not only durable but also offers an excellent writing and touch experience. With a resolution of 32768 x 32768, a response time of ≤10ms, and touch accuracy within ±1mm, this display ensures precise and responsive interactions. Notably, it recognizes not only fingers and stylus pens but also hands with gloves and other non-transparent touch-sensitive media.

 Powerful Android System

Running on an 8-core ARM Cortex-A55 processor and powered by Android 12, the ARM8603 is no slouch when it comes to performance. You have the option of choosing from DDR4 4G or 8G RAM and storage options of 32G or 128G. What’s more, it also supports 2.4G and 5G Wi-Fi as well as Bluetooth 5.0, ensuring seamless connectivity.

Versatile Connectivity

The ARM8603 is equipped with an array of input and output ports, including LAN IN, HDMI 2.0, RS-232, USB 3.0, VGA IN, Audio IN, DP IN, MIC IN, TF-card, USB 2.0, Earphone, HDMI OUT, LAN OUT, coaxial (RCA), and TOUCH OUT. Additionally, its user-friendly front ports, including USB 3.0, HDMI 2.0, USB TOUCH, and Type-C, ensure easy access and convenience.

Comprehensive Accessories

The package includes essential accessories like a magnetic whiteboard pen, a wall-mount bracket, a power cord, a remote control, and Wi-Fi antennas.

Efficiency and Longevity

Designed for energy efficiency, the ARM8603 has a power consumption of ≤420W (excluding OPS), with standby consumption as low as ≤0.5W. Impressively, its display lifespan exceeds 30,000 hours, guaranteeing long-term usage. It operates with a power supply of 100-240V at 50/60Hz.

Sleek Design

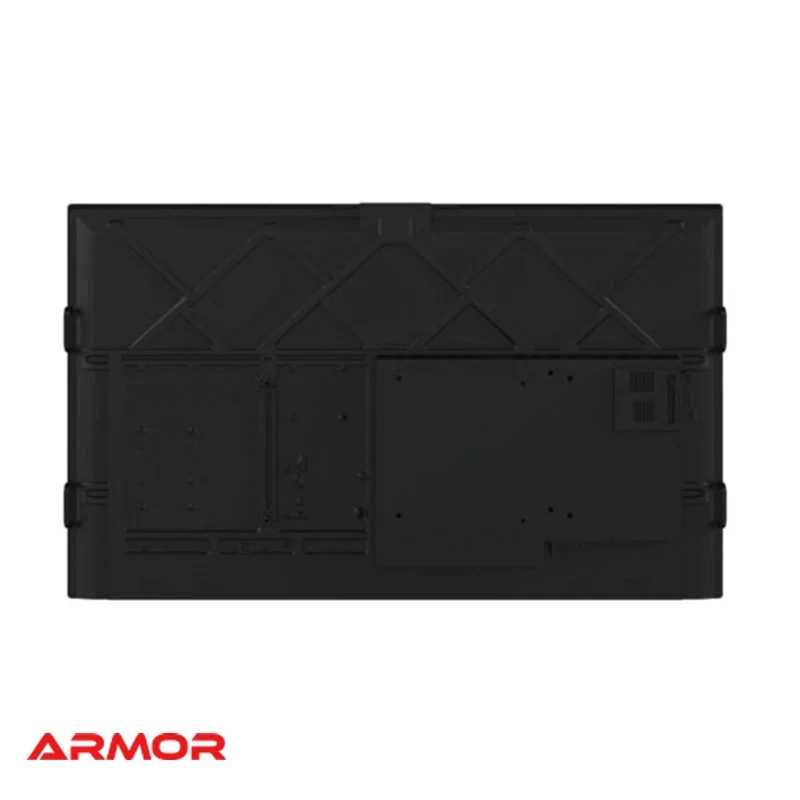

The ARM8603 features a sleek design with dimensions of 1953.56 x 1177.9 x 88.3 mm. Additionally, it offers VESA hole sites (4-M8) at 800mm x 400mm, making wall mounting a breeze. The display has a net weight of 66KG and a gross weight of 82KG.

PC Option (Optional)

For enhanced performance, the ARM8603 supports optional PCs with choices like H81, H110, or H310 mainboards. These PCs run on 18V DC power, with a rated output current of 6A and a peak output current of 8A. Importantly, they conform to Intel® OPS-C JAE 80-pin connectors and are available in both national and European standard OPS sizes.

The ARM8603 is more than just an interactive display; it’s a dynamic tool for collaboration, learning, and presentations. With its extensive features, user-friendly design, and optional PC, it’s a versatile solution for diverse needs. Upgrade your interactive experience with the ARM8603 and redefine the way you work and learn.
